Blackvue CM100LTE 4G Module

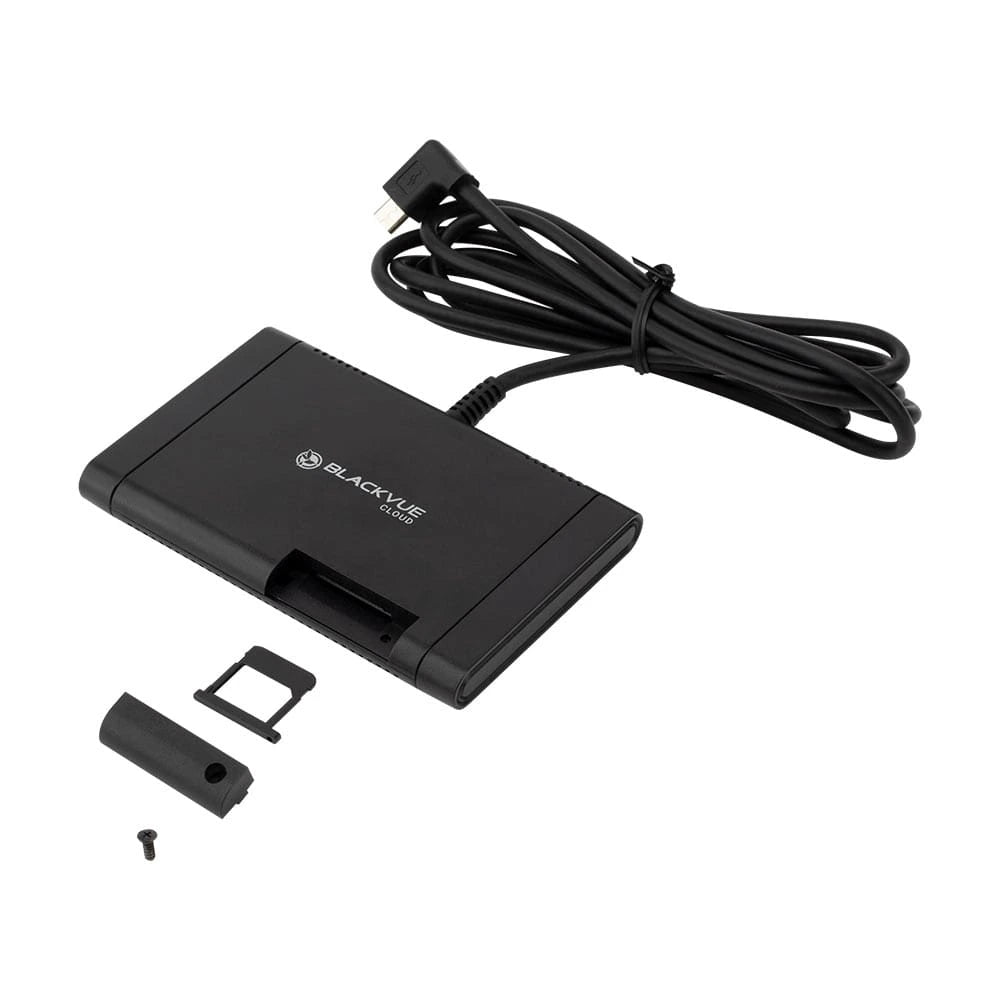

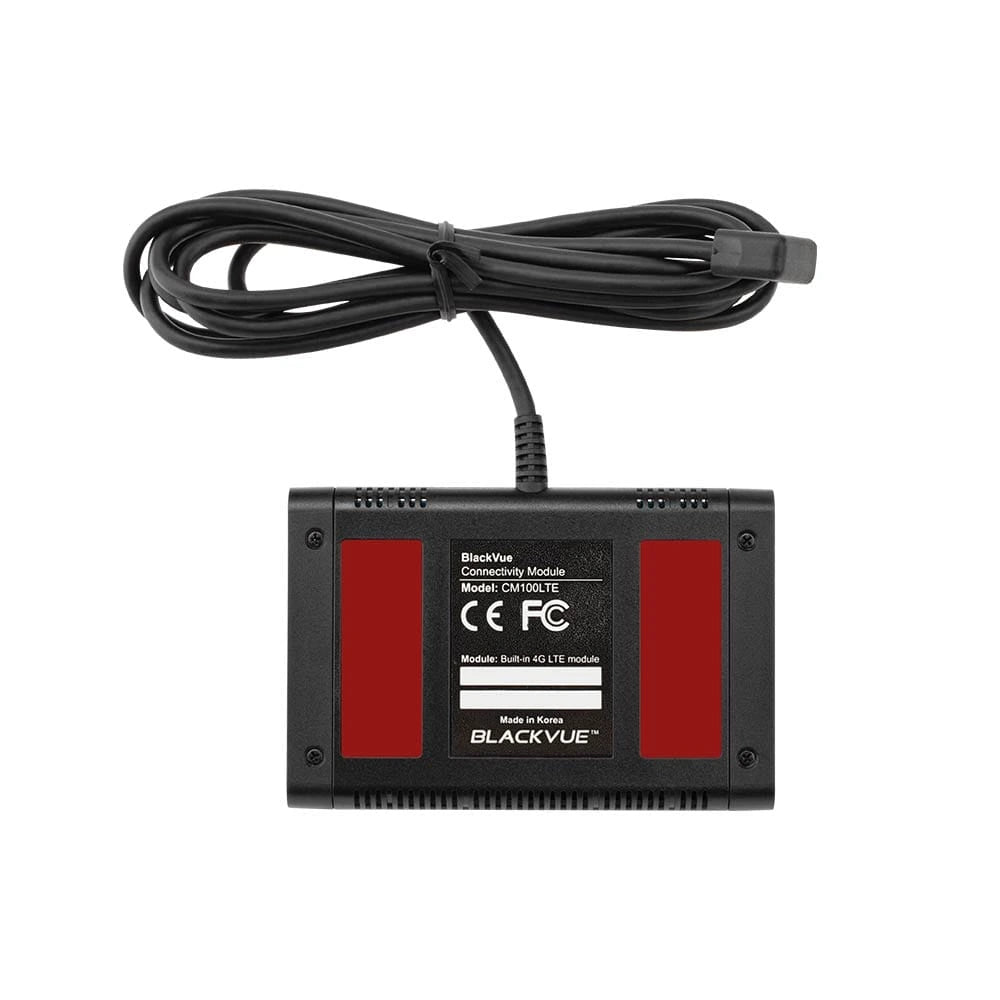

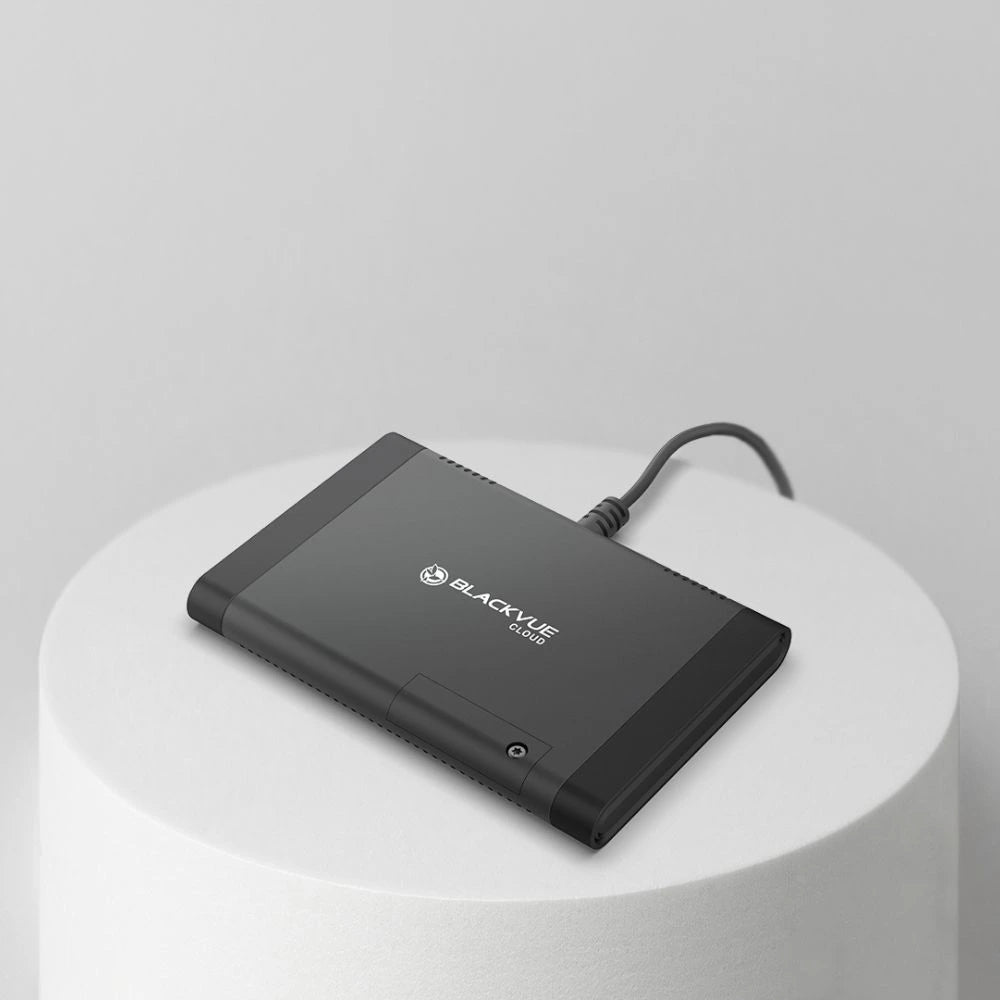

BlackVue CM100LTE 4G LTE Connectivity Module for BlackVue Dash Cams
Upgrade your compatible BlackVue dash-cam into a fully connected vehicle monitoring system.

Key Features

• Always-on 4G LTE connectivity: Plug the CM100LTE into your compatible BlackVue dash-cam and enjoy live remote access, real-time alerts and 24/7 monitoring via the BlackVue Cloud.

• Plug-and-play installation: The module connects via a cable into the dash-cam’s USB port; powered by the dash-cam itself no separate power supply needed.

• Nano SIM support with wide LTE band compatibility: Accepts nano-SIM cards; supports multiple bands (e.g., EC25-E: B1/B3/B5/B7/B8/B20) and up to CAT-4 speeds (150 Mbps down, 50 Mbps up) depending on region.

• Compact and robust: Just ~90 × 60 × 10 mm in size and ~74 g weight for standard versions, designed to be discreetly mounted on your windscreen.

• Extreme-condition ready: Operates reliably from –35 °C to +75 °C, and stores from –40 °C to +85 °C — ideal for vehicles in diverse climates.

• Cloud & remote features unlocked: With CM100LTE installed you get benefits like live-view from anywhere, push notifications when your vehicle is impacted, video-backup to the cloud and even mobile-hotspot functionality (for compatible dash cams).

Why Choose the CM100LTE?

If you already have a compatible BlackVue X-series dash cam (for example, DR900X, DR770X or DR750X and variants), adding the CM100LTE transforms it from a standard dash-cam into a connected vehicle guardian. You’ll never be “out of reach” of what’s going on with your car—whether you’re parked, away or on the road. Remote access and alert capabilities means better security, easier fleet oversight and greater peace of mind.

What’s in the Box

• CM100LTE connectivity module

• Cable harness (USB connection to dash-cam)

• Adhesive mounting pad & cable-clips

• SIM eject tool

• Quick start guide / SIM activation guide

Technical Snapshot

• Model: CM100LTE

• Size: 90 mm x 60 mm x 10 mm; Weight: ~74 g (varies by version)

• LTE Speeds (non-CA CAT-4): Up to 150 Mbps DL / 50 Mbps UL (depending on bands)

• Power: Via dash-cam; USB interface; typical input 5V / 1A; no separate power supply needed.

• Operating Temperature: –35 °C to +75 °C; Storage: –40 °C to +85 °C

• SIM: Nano SIM card (3.0V) required – note: SIM card & data plan are not included.

Installation & Tips

1. Mount the CM100LTE in a clear, unobstructed space near your windscreen ideally high corner for best signal reception.

2. Insert a nano-SIM card that supports your local network and data plan. Ensure the LTE bands of your chosen version match your carrier.

3. Connect the module to your BlackVue dash-cam’s USB port; once onboard, your dash-cam will power the module and automatically connect to the Cloud.

4. Register & set up via the BlackVue app: configure alerts, remote live view and any mobile hotspot functions if supported.

5. Ensure your data plan is active and supports sufficient data constant connectivity uses data even when parked.

Summary

The BlackVue CM100LTE is a smart, compact upgrade that brings LTE connectivity to your BlackVue dash cam. Whether you're a private driver, rideshare operator or fleet manager, this module lets you stay connected to your vehicle live access, real-time alerts, cloud backup and more all in a plug-and-play form factor. Add this module and give your vehicle the next level of protection.
